Overview

This document provides detailed instructions for setting up request and response instrumentation in Apigee using a JavaScript policy. The goal is to capture API traffic and send it to the Astra Traffic Collector for further analysis and security monitoring.

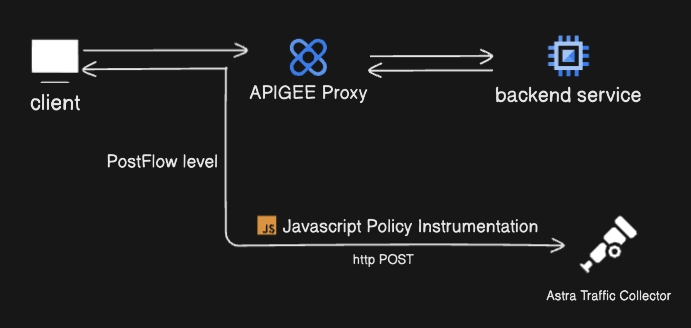

Illustration: High-level integration flow between APIGEE and Astra Traffic Collector

Prerequisites

Before beginning, ensure you have:

• Access to Apigee UI in Google Cloud.

• An existing Apigee proxy to which you can attach the policy.

• Astra Traffic Collector is available and reachable.

  📄 How to setup Astra Traffic Collector in Linux

• APIGEE integration is created and sensorID is copied

  📄 How to Create Sensor Integration for API Observability

Quick Installation

Step 1: Set Up OTLP/HTTP Receiver in Astra Traffic Collector

You can configure Astra Traffic Collector to receive OTLP data over HTTP or HTTPS.

📄 How To Set Up OTLP/HTTP Receiver in Astra Traffic Collector

Step 2: Create a JavaScript Policy in APIGEE

1. Go to your Apigee API Proxy.

2. Select the Develop tab.

3. Click + Add Step in the ProxyEndpoint PostFlow section at Response time.

4. Choose to create a new Policy with type as JavaScript under the Extension Policies.

5. Provide a name and then upload the javascript policy available here.

var samplingRatio = 1;                   // exampleValue: 0.5
var domainName = "your-domain.com";      // exampleValue: "mydomain.nip.io"
var sensorId = "your-sensor-id";         // exampleValue: "12345678-1234-4abc-9def-987654321000"
var astraTrafficCollectorEndpoint = "";  // exampleValue: "https?://collector-ip-or-domain-endpoint:4318/v1/traces"





//----------------------DO NOT CHANGE THIS. Below is javascript policy. DO NOT CHANGE THIS ----------------------

// Generate a random number between 0 and 1
var randomValue = Math.random();

// Execute only if the random value is = samplingRatio
if (samplingRatio == 1 || randomValue = samplingRatio) {
    // Capture request headers
    var allReqHeaders = {};
    for (var header in request.headers) {
        allReqHeaders[header] = request.headers[header];
    }
    allReqHeaders["host"] = domainName;
    context.setVariable('allReqHeaders', JSON.stringify(allReqHeaders));

    // Capture response headers
    var allRespHeaders = {};
    for (var header in response.headers) {
        allRespHeaders[header] = response.headers[header];
    }
    context.setVariable('allRespHeaders', JSON.stringify(allRespHeaders));

    // Extract path from proxy URL
    var proxyUrl = context.getVariable('proxy.url');

    function getPathFromUrl(proxyUrl) {
        var firstDoubleSlash = proxyUrl.indexOf("//");
        if (firstDoubleSlash !== -1) {
            var startIndex = proxyUrl.indexOf("/", firstDoubleSlash + 2);
            return startIndex !== -1 ? proxyUrl.substring(startIndex) : "/";
        }
        return "/";
    }

    var targetPath = getPathFromUrl(proxyUrl);

    // Construct OpenTelemetry payload
    var payload = {
        "resourceSpans": [
            {
                "resource": {
                    "attributes": [
                        { "key": "service.name", "value": { "stringValue": "astra-apigee-js-instrumentation" } },
                        { "key": "sensor.id", "value": { "stringValue": sensorId } },
                        { "key": "sensor.version", "value": { "stringValue": "1.0.0" } },
                    ]
                },
                "scopeSpans": [
                    {
                        "scope": { "name": "instrumentaton" },
                        "spans": [
                            {
                                "traceId": "1234567890abcdef1234567890abcdef",
                                "spanId": "abcdef1234567890",
                                "name": "proxy-endpoint-span",
                                "kind": 1,
                                "startTimeUnixNano": Date.now() * 1e6,
                                "endTimeUnixNano": Date.now() * 1e6,
                                "attributes": [
                                    { "key": "http.method", "value": { "stringValue": context.getVariable('request.verb') } },
                                    { "key": "http.status_code", "value": { "intValue": parseInt(context.getVariable('response.status.code'), 10) } },
                                    { "key": "http.target", "value": { "stringValue": targetPath } },
                                    { "key": "http.host", "value": { "stringValue": domainName } },
                                    { "key": "http.flavor", "value": { "stringValue": context.getVariable('request.version') } },
                                    { "key": "http.scheme", "value": { "stringValue": context.getVariable('client.scheme') } },
                                    { "key": "net.sock.peer.addr", "value": { "stringValue": context.getVariable('client.ip') } },
                                    { "key": "http.request.headers", "value": { "stringValue": context.getVariable('allReqHeaders') } },
                                    { "key": "http.response.headers", "value": { "stringValue": context.getVariable('allRespHeaders') } },
                                    { "key": "http.request.body", "value": { "stringValue": context.getVariable('request.content') } },
                                    { "key": "http.response.body", "value": { "stringValue": context.getVariable('response.content') } }
                                ]
                            }
                        ]
                    }
                ]
            }
        ]
    };

    // Store payload as an Apigee variable
    context.setVariable('OTELPayload', JSON.stringify(payload));

    // Function to handle HTTP response
    function onComplete(response, error) {
        if (response) {
            if (response.status >= 200 && response.status  300) {
                print('Payload sent successfully. Response Status: ' + response.status);
            } else {
                print('Failed to send payload. Status: ' + response.status);
                print('Response Content: ' + response.content);
            }
        } else {
            print('HTTP Request Error: ' + error);
            context.setVariable('jscallout-http-error', 'Error: ' + error);
        }
    }

    // Send payload to OpenTelemetry collector
    var method = 'POST';
    var headers = { 'content-type': 'application/json' };
    var body = context.getVariable('OTELPayload');
    var req = new Request(astraTrafficCollectorEndpoint, method, headers, body);
    httpClient.send(req, onComplete);
}

6. Click on the policy that just got created and you will be able to see a similar XML that apigee created to attach the JS File to the policy

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Javascript continueOnError="false" enabled="true" timeLimit="500" name="logReqRespPolicy">
  <DisplayName>logReqRespPolicy</DisplayName>
  <Properties/>
  <ResourceURL>jsc://instrument.js</ResourceURL>
</Javascript>

Step 3: How the Policy Works

• Request & Response Headers — Captures all request and response headers.

• Request & Response Body — Captures the full payload content.

• Trace Attributes — Generates an OpenTelemetry-compatible payload.

• Conditional Sampling — Sends only a subset of requests if samplingRatio is less than 1.

• Outbound Transmission — Sends the payload to Astra Traffic Collector over HTTP(S).

Troubleshooting

• Ensure the JavaScript file is correctly referenced in the policy.

• Check for syntax errors in the JavaScript code.

• Use context.setVariable() to debug variable values.

  For further assistance, refer to the Apigee Documentation.
