This guide explains how to configure Astra Proxy Service to capture HTTP traffic from Postman, Burp Suite, Firefox, and Curl.

Overview

The astra-cli utility lets you run:

• Astra Traffic Collector (otel-based collector)

• Astra Proxy Service (Dockerized MITM forward proxy)

Both run locally to capture traces for specific allowed hostnames.

How it works?

1. Client apps (Postman, Burp, Firefox, Curl) are configured to use Astra Proxy Service as a forward proxy.

2. Proxy intercepts the traffic and generates traces.

3. Traces are forwarded to Astra Traffic Collector.

4. Collector pushes sanitized traces to Astra Dashboard.

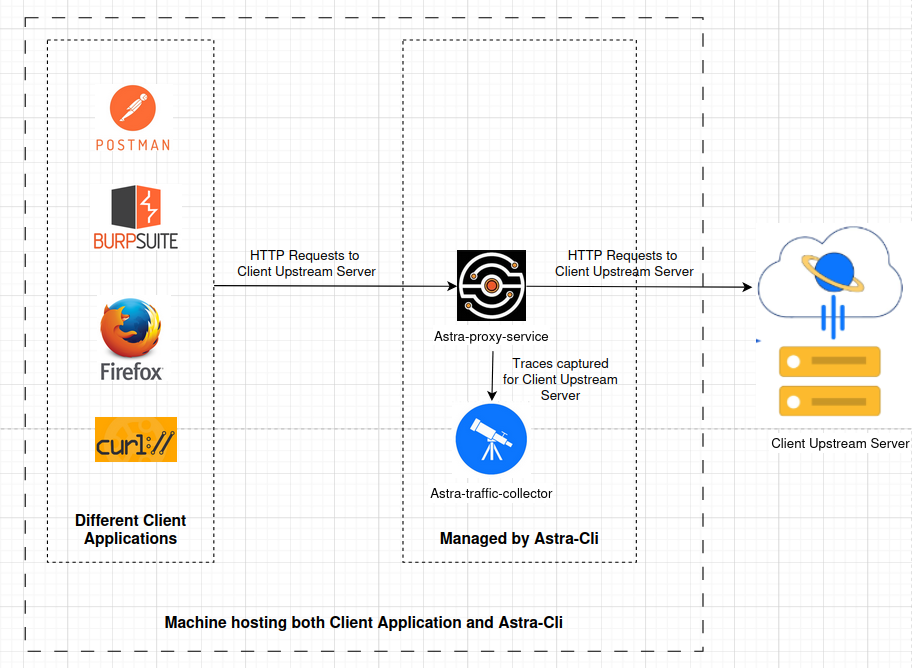

Illustration: High-level integration flow between client applications consuming Astra Proxy Service as a forward proxy to generate otel traces

When to use each client application:

• Postman: When you have ready-made requests or a collection which is runnable.

• Firefox: When you can manually browse a site you want to observe.

• Burp Suite: Ideal for security professionals already using Burp for traffic analysis.

Prerequisites

1. Install Docker Desktop

   1. Click here to open the docker installation guide for windows

   2. Click here to open the docker installation guide for Mac

   3. Click here to open the docker installation guide for Linux

2. Download 'astra-cli' from this Release Page

   Supported OS: macOS (Darwin), Windows, and Linux with Architectures: arm64, amd64

   Create a working directory where you can place the downloaded binary

   Mac users, please choose /var or /tmp as working directory since Mac may not expose all path for volume mount.

3. Rename downloaded binary to astra-cli for ease of use

4. If running on macOS, allow execution in Privacy & Security

5. Run the following command to verify the astra-cli

• For Mac & Linux:

  chmod +x astra-cli
  ./astra-cli -v

• For Windows:

  ./astra-cli.exe -v

Quick Installation of Astra Traffic Collector and Astra Proxy Instrumentation

Step 1 – Create Integrations in Astra Dashboard

Create Astra Traffic Collector and Astra Proxy Instrumentation integration

📄 How to Create Collector Integration for API Observability

📄 How to Create Sensor Integration for API Observability

Securely store all secrets and IDs shown during creation. You will need them for configuration.

Step 2 – Prepare astra.env

Create an environment file astra.env and fill with the following contents

ALLOWED_HOSTS=https://mydomain.com,extraHost1
SENSOR_ID=12345678-1234-4abc-9def-987654321000
COLLECTOR_ID=12345678-1234-4abc-9def-987654321000
CLIENT_ID=12345678-1234-4abc-9def-987654321000
CLIENT_SECRET=12345678-1234-4abc-9def-987654321000

ASTRA_TRAFFIC_COLLECTOR_ENDPOINT=astra-traffic-collector:4317
TOKEN_URL=https://auth.getastra.com/realms/astra_api_scanner/protocol/openid-connect/token
REMOTE_ADDR_IDENTIFIER_HEADER=x-forwarded-for

Step 3 – Validate the env file astra.env

For Mac & Linux:

chmod +x astra-cli
./astra-cli validate -e astra.env

For Windows:

./astra-cli.exe validate -e astra.env

Step 4 – Create a custom collector config config_custom.yaml

Paste the following content

processors:
    filter/custom:
       error_mode: ignore
       traces:
         span:
           - ConvertCase(attributes["http.method"], "upper") == "OPTIONS"
    transform/custom:
       error_mode: ignore
       trace_statements:
         - context: span
           statements:
             - replace_all_patterns(attributes, "value", "^5[1-5][0-9]{14}$", "{{CreditCard}}")

Step 5 – Start Astra Traffic Collector Service

For Mac & Linux:

chmod +x astra-cli
./astra-cli collector quickstart -c config_custom.yaml -e astra.env

For Windows:

./astra-cli.exe collector quickstart -c config_custom.yaml -e astra.env

Step 6 – Start Astra Proxy Service

For Mac & Linux:

chmod +x astra-cli
./astra-cli proxy quickstart -p 8181 -e astra.env

For Windows:

./astra-cli.exe proxy quickstart -p 8181 -e astra.env

Step 7 – Check Service Status

For Mac & Linux:

./astra-cli collector status
./astra-cli proxy status

For Windows:

./astra-cli.exe collector status
./astra-cli.exe proxy status

You should see the status as Up similar to below:

CONTAINER ID   IMAGE                        COMMAND                  CREATED        STATUS          NAMES
50bf5460e25c   getastra/traffic-collector   "/bin/sh -c '/startu…"   2 weeks ago    Up 2 weeks      astra-traffic-collector

If status is Exited, then kindly take a look at Troubleshooting section

How to use Client Applications with Astra Proxy Instrumentation to observe traffic for Allowed_Hosts

Once Proxy + Collector are running, configure client tools to forward traffic through the proxy (localhost:8181)

1. How to configure the forward proxy for Mozilla Firefox browser

• Open Settings → Network Settings.

• Choose Manual Proxy Configuration.

  1. HTTP Proxy = localhost, Port = 8181.

  2. Check Also use this proxy for HTTPS.

• Visit http://mitm.it, download & install the Firefox CA cert.

• Browse your app → traces are visible in Collector logs. Also you should be able to see the endpoints in Astra Dashboard if the endpoints doesn't exist already.

  📄 How to inspect logs using astra-cli

• Disable proxy when done.

2. How to configure the forward proxy for Postman

• Open Postman → Settings → Proxy.

  1. Enable Custom Proxy Configuration.

  2. HTTP Proxy = localhost, Port = 8181.

• Run requests or collection in postman → traces are visible in Collector logs. Also you should be able to see the endpoints in Astra Dashboard if the endpoints doesn't exist already.

  📄 How to inspect logs using astra-cli

• Disable proxy after capture.

3. How to configure the forward proxy for Burp

• Open Burp Suite

• Go to settings icon located in top right corner

• Click on Network in left menu

• Click on Connections

• Go to Upstream Proxy Servers section

• Add an entry with proxy host being localhost and port being 8181.

• That's it. Now the requests which are passing through your Burp will be captured by Astra proxy as well. Also you should be able to see the endpoints in Astra Dashboard if the endpoints doesn't exist already.

  📄 How to inspect logs using astra-cli

• Turn off the Burp suite proxy once all traces are generated.

4. How to configure the forward proxy for cURL

• Use --proxy flag:

  curl -k --proxy localhost:8181 https://testfire.net/api/v1/accounts

  you can skip -k flag from the above curl if you have CA certificate for your server. You can provide the CAcert by using --cacert flag

• That's it. Now the requests which are fired from Curl will be captured by Astra proxy as well. Also you should be able to see the endpoints in Astra Dashboard if the endpoints doesn't exist already.

  📄 How to inspect logs using astra-cli

Upgrade

Docker container upgrade

This process updates the docker container to a new version of the Astra Proxy Service.

1. Change directory to the place where astra-cli executable is downloaded

2. Run below command:

   ./astra-cli collector upgrade
   ./astra-cli proxy upgrade

3. Upon successful image pull, run this to stop the current container and subsequently remove it

   ./astra-cli collector remove
   ./astra-cli proxy remove

4. Restart the container with newly pulled image

   ./astra-cli collector quickstart -c config_custom.yaml -e astra.env
   ./astra-cli proxy quickstart -p 8181 -e astra.env

Troubleshooting

1. Astra Proxy Instrumentation image pull fails (Mac ARM issue - no matching manifest for linux/arm64/v8)

Solution:

• Use this command to pull the image:

docker pull --platform linux/x86_64 getastra/proxy

• Now you can quickstart the Astra Proxy Instrumentation by running

./astra-cli proxy quickstart -p 8181 -e astra.env

2. Astra Proxy Integration or Astra Traffic Collector is in Exited state

Symptoms:

I see the STATUS as Exited when I query using below commands

./astra-cli proxy status
./astra-cli collector status

Causes:

• Potential problem with env file

Solution:

• Kindly ensure that SENSOR_ID, ALLOWED_HOSTS, COLLECTOR_ID, CLIENT_ID, CLIENT_SECRET are set in astra.env file. You can run following command to validate the astra.env file

./astra-cli validate -e astra.env

3. Traces are not captured by Astra Proxy Instrumentation

Symptoms:

• I have configured the astra-proxy-service upstream proxy address in my Postman/Burp/Firefox. I don't see any API endpoint entry in my inventory when I create traces from my application.

Causes:

• Requests captured have status code other than 2XX or 3XX.

Solution:

• Astra Cli generates the trace only for the 2XX and 3XX response code.

• ScopeURI given for ALLOWED_HOSTS variable is incorrect

• Misconfigured astra.env file

• Kindly ensure that SENSOR_ID, ALLOWED_HOSTS, COLLECTOR_ID, CLIENT_ID, CLIENT_SECRET are set in astra.env file. You can run following command to validate the astra.env file

  ./astra-cli validate -e astra.env

FAQ

1. How to inspect logs of Astra Traffic Collector?

Note that the following command gives full logs of selected service.

./astra-cli collector logs

If you need most recent logs, say last 5 minutes, you can use a small variant of the command by passing in a flag

./astra-cli collector logs --since=5m

If you need most recent logs, say last 1 hour, you can use a small variant of the command by passing in a flag

./astra-cli collector logs --since=1h

If you want to tail the logs, then you can use this command

./astra-cli collector logs --tail=0 -f

If you want to redirect the logs to a file for further inspection, you can use this command

./astra-cli collector logs --since=1h > collector.log 2>&1

2. How to view the detailed instruction on how to setup Astra Proxy Instrumentation and Astra Traffic Collector using Astra-cli

./astra-cli instructions

3. Different Commands available with Astra-Cli for Astra Proxy Instrumentation

astra-cli proxy status      : Check proxy container status
astra-cli proxy logs        : View proxy container logs
astra-cli proxy logs -f     : Follow proxy container logs
astra-cli proxy stop        : Stop the proxy container
astra-cli proxy remove      : Stop and Remove the proxy container
astra-cli proxy upgrade     : Upgrade the proxy image

4. Different Commands available with Astra-Cli for Astra Traffic Collector

astra-cli collector status   : Check collector container status
astra-cli collector logs     : View collector container logs
astra-cli collector logs -f  : Follow collector container logs
astra-cli collector stop     : Stop the collector container
astra-cli collector remove   : Stop and Remove the collector container
astra-cli collector upgrade  : Upgrade the collector image

5. Using start command for astra-proxy

Assuming that astra-cli is located under /tmp

./astra-cli proxy start --network=astra-obs -p 8181:8080
-v /tmp/.mitmproxy:/root/.mitmproxy
--env-file env.env --entrypoint mitmdump getastra/proxy -k -s
/app/capture.py --mode upstream:http(s)
://HOSTNAME:PORT --upstream-auth USER:PASSWORD
